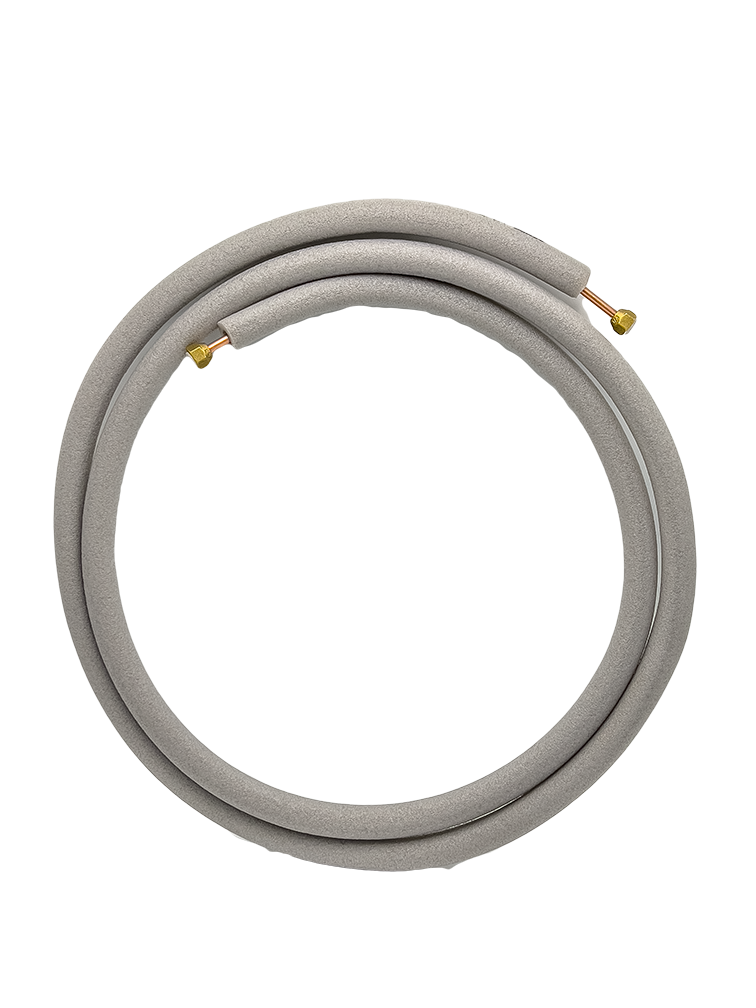

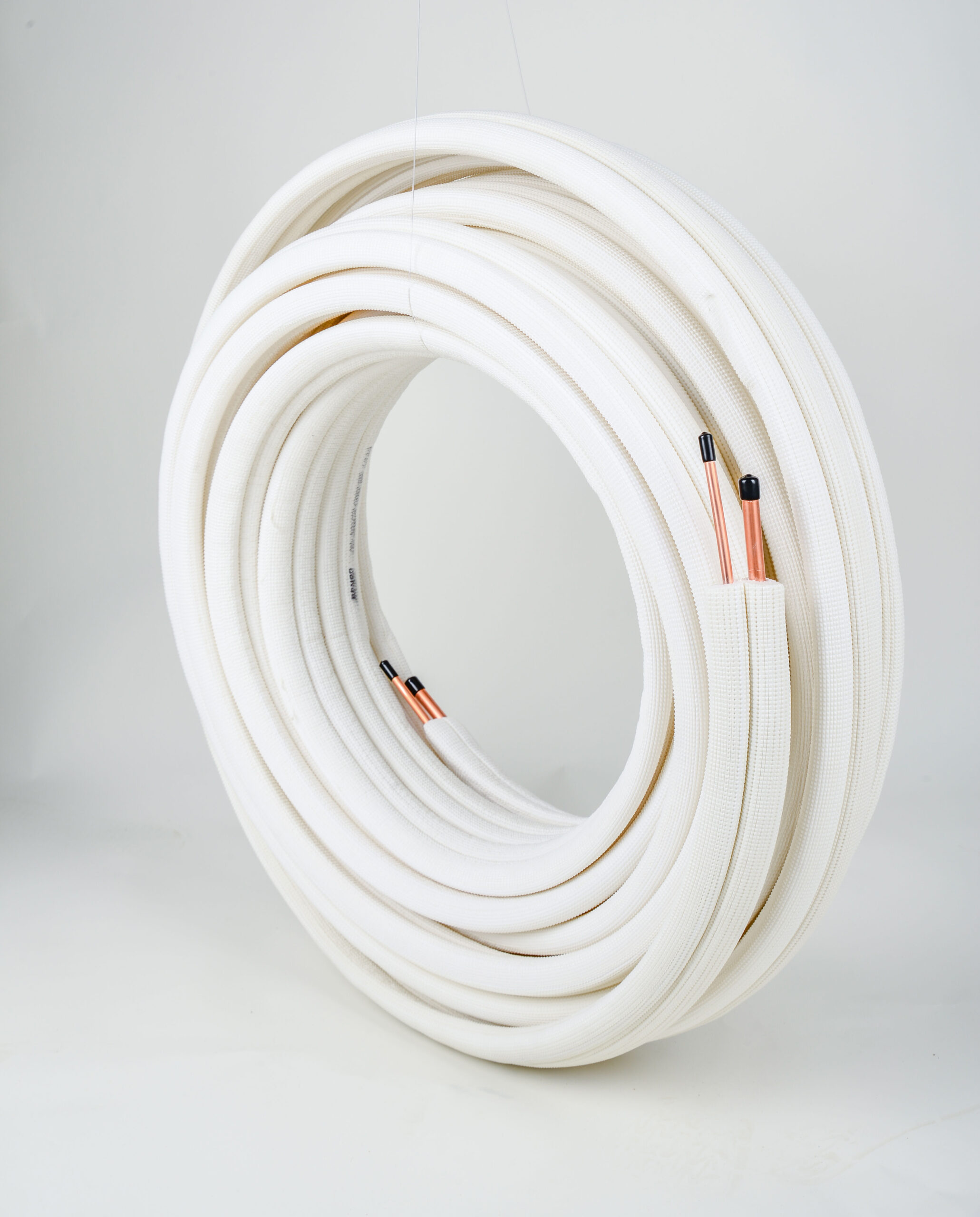

High-performance insulated copper tubing for HVAC & refrigeration systems.
Our copper tubes are manufactured from high-purity C12200 copper in accordance with EN 12735-1 standards. Commonly used in air conditioning and refrigeration systems, they ensure reliable performance and long-term durability.

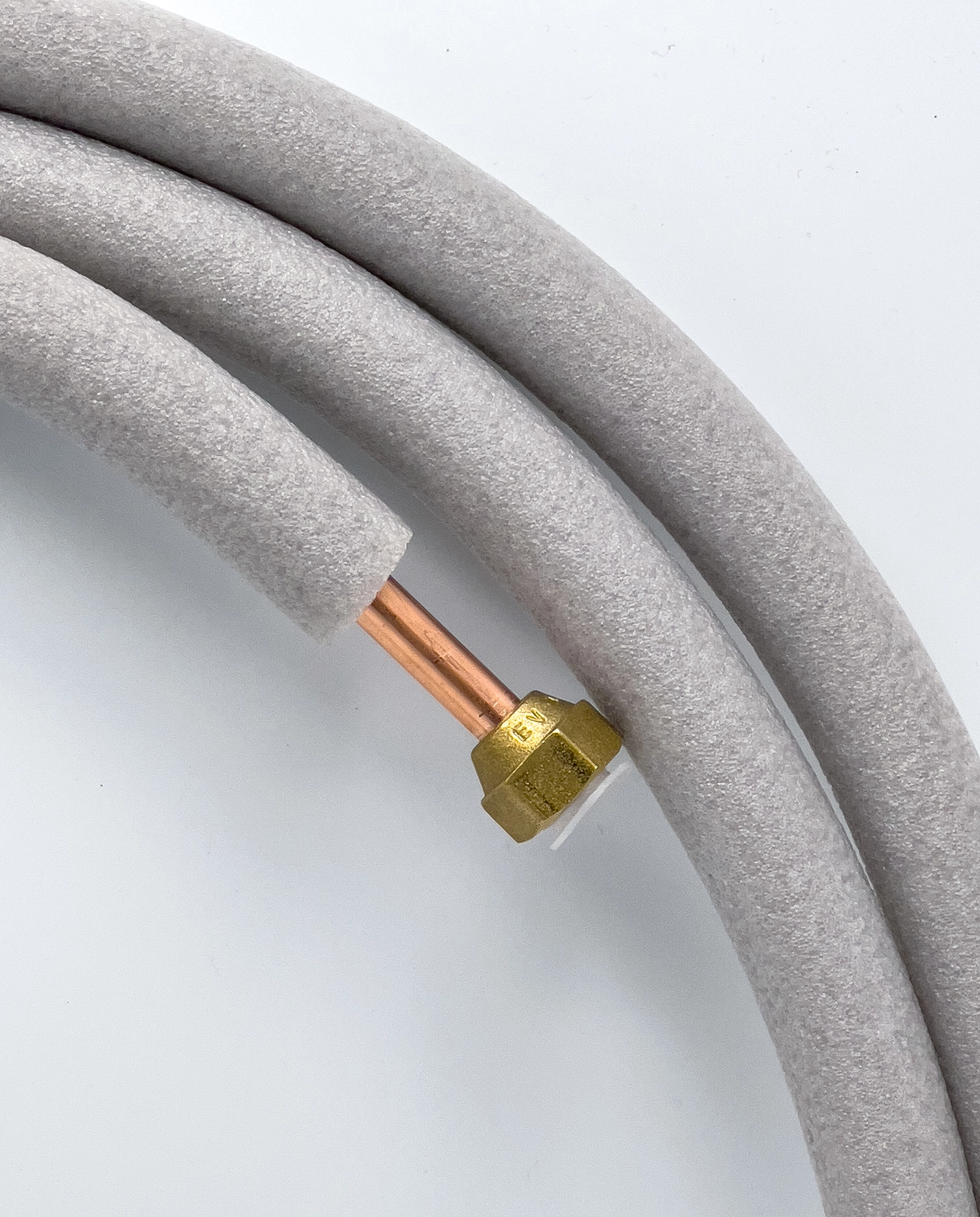

Available in various sizes, thicknesses, and lengths, the tubes are supplied with protective caps and can be combined with high-performance insulation for enhanced efficiency.
EN 12735-1 Certified
Soft (annealed)
EN 12735-1
| Outside Diameter (inch) | Outside Diameter (mm) | Wall Thickness (mm) | Tube Length (m) | Type of insulation | Ending |
|---|---|---|---|---|---|
| 1/4 | 6.35 | 0.6 ~ 1.25 | 1 ~ 50 | IXPE Covered / Single layer | Brass nut or cap |
| 3/8 | 9.52 | 0.6 ~ 1.25 | 1 ~ 50 | IXPE Covered / Single layer | Brass nut or cap |
| 1/2 | 12.7 | 0.6 ~ 1.25 | 1 ~ 50 | IXPE Covered / Single layer | Brass nut or cap |
| 5/8 | 15.88 | 0.6 ~ 1.25 | 1 ~ 50 | IXPE Covered / Single layer | Brass nut or cap |
| 3/4 | 19.05 | 0.6 ~ 1.25 | 1 ~ 50 | IXPE Covered / Single layer | Brass nut or cap |
9000 / 12000BTU
12000 / 18000BTU
24000BTU
24000BTU
48000BTU
48000BTU
|
Diamètre extérieur (pouces)
|
Diamètre extérieur (mm)
|
Épaisseur de paroi (mm)
|
Longueur du tube (m)
|
Fin
|
|---|---|---|---|---|
|
1/4
|
6,35
|
0,6 ~ 1,25
|
10 ~ 50
|
Capuchon
|
|
3/8
|
9,52
|
0,6 ~ 1,25
|
10 ~ 50
|
Capuchon
|
|
1/2
|
12.7
|
0,6 ~ 1,25
|
10 ~ 50
|
Capuchon
|
|
5/8
|
15,88
|
0,6 ~ 1,25
|
10 ~ 50
|
Capuchon
|
|
3/4
|
19.05
|
0,6 ~ 1,25
|
10 ~ 50
|
Capuchon
|
